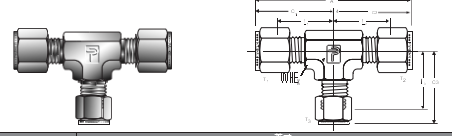

变径三通 英制
CPI™ 订货号 | A-LOK® 订货号 |
互换型号 | 英寸 | ||||||||||
T 卡套端 | T 卡套端 | T 卡套端 | A | L | C | L | C | L | C | W HEX | |||
4-4-2 JBZ | 4-4-2 JLZ | 400-3-4-2 | 1/4 | 1/4 | 1/8 | 2.10 | 0.76 | 1.05 | 0.76 | 1.05 | 0.70 | 0.96 | 1/2 |
6-6-4 JBZ | 6-6-4 JLZ | 600-3-6-4 | 3/8 | 3/8 | 1/4 | 2.40 | 0.91 | 1.20 | 0.91 | 1.20 | 0.85 | 1.14 | 5/8 |
6-4-6 JBZ | 6-4-6 JLZ | 600-3-4-6 | 3/8 | 1/4 | 3/8 | 2.34 | 0.91 | 1.20 | 0.85 | 1.14 | 0.91 | 1.20 | 5/8 |
6-4-4 JBZ | 6-4-4 JLZ | 600-3-4-4 | 3/8 | 1/4 | 1/4 | 2.34 | 0.91 | 1.20 | 0.85 | 1.14 | 0.85 | 1.14 | 5/8 |
8-8-6 JBZ | 8-8-6 JLZ | 810-3-8-6 | 1/2 | 1/2 | 3/8 | 2.84 | 1.02 | 1.42 | 1.02 | 1.42 | 1.02 | 1.31 | 13/16 |
8-8-4 JBZ | 8-8-4 JLZ | 810-3-8-4 | 1/2 | 1/2 | 1/4 | 2.84 | 1.02 | 1.42 | 1.02 | 1.42 | 0.96 | 1.25 | 13/16 |
8-6-8 JBZ | 8-6-8 JLZ | 810-3-6-8 | 1/2 | 3/8 | 1/2 | 2.73 | 1.02 | 1.42 | 1.02 | 1.31 | 1.02 | 1.42 | 13/16 |
8-4-8 JBZ | 8-4-8 JLZ | 810-3-4-8 | 1/2 | 1/4 | 1/2 | 2.67 | 1.02 | 1.42 | 0.96 | 1.25 | 1.02 | 1.42 | 13/16 |
8-6-6 JBZ | 8-6-6 JLZ | 810-3-6-6 | 1/2 | 3/8 | 3/8 | 2.73 | 1.02 | 1.42 | 1.02 | 1.31 | 1.02 | 1.31 | 13/16 |
8-4-4 JBZ | 8-4-4 JLZ | 810-3-4-4 | 1/2 | 1/4 | 1/4 | 2.67 | 1.02 | 1.42 | .96 | 1.25 | .96 | 1.25 | 13/16 |
10-10-8 JBZ | 10-10-8 JLZ | 1010-3-10-8 | 5/8 | 5/8 | 1/2 | 3.06 | 1.13 | 1.53 | 1.13 | 1.53 | 1.13 | 1.53 | 7/8 |
10-10-6 JBZ | 10-10-6 JLZ | 1010-3-10-6 | 5/8 | 5/8 | 3/8 | 3.06 | 1.13 | 1.53 | 1.13 | 1.53 | 1.13 | 1.53 | 7/8 |
10-8-8 JBZ | 10-8-8 JLZ | 1010-3-8-8 | 5/8 | 1/2 | 1/2 | 3.06 | 1.13 | 1.53 | 1.13 | 1.53 | 1.13 | 1.53 | 7/8 |
10-8-6 JBZ | 10-8-6 JLZ | 1010-3-8-6 | 5/8 | 1/2 | 3/8 | 3.06 | 1.13 | 1.53 | 1.13 | 1.53 | 1.13 | 1.42 | 7/8 |
10-6-6 JBZ | 10-6-6 JLZ | 1010-3-6-6 | 5/8 | 3/8 | 3/8 | 2.95 | 1.13 | 1.53 | 1.13 | 1.42 | 1.13 | 1.42 | 7/8 |
10-6-8 JBZ | 10-6-8 JLZ | 1010-3-6-8 | 5/8 | 3/8 | 1/2 | 2.95 | 1.13 | 1.53 | 1.13 | 1.42 | 1.13 | 1.53 | 7/8 |
12-12-10 JBZ | 12-12-10 JLZ | 1210-3-12-10 | 3/4 | 3/4 | 5/8 | 3.12 | 1.16 | 1.56 | 1.16 | 1.56 | 1.16 | 1.56 | 1-1/16 |
12-12-8 JBZ | 12-12-8 JLZ | 1210-3-12-8 | 3/4 | 3/4 | 1/2 | 3.12 | 1.16 | 1.56 | 1.16 | 1.56 | 1.16 | 1.56 | 1-1/16 |
12-12-6 JBZ | 12-12-6 JLZ | 1210-3-12-6 | 3/4 | 3/4 | 3/8 | 3.12 | 1.16 | 1.56 | 1.16 | 1.56 | 1.16 | 1.45 | 1-1/16 |
12-12-4 JBZ | 12-12-4 JLZ | 1210-3-12-4 | 3/4 | 3/4 | 1/4 | 3.12 | 1.16 | 1.56 | 1.16 | 1.56 | 1.10 | 1.39 | 1-1/16 |
12-10-10 JBZ | 12-10-10 JLZ | 1210-3-10-10 | 3/4 | 5/8 | 5/8 | 3.12 | 1.16 | 1.56 | 1.16 | 1.56 | 1.16 | 1.56 | 1-1/16 |
12-8-8 JBZ | 12-8-8 JLZ | 1210-3-8-8 | 3/4 | 1/2 | 1/2 | 3.12 | 1.16 | 1.56 | 1.16 | 1.56 | 1.16 | 1.56 | 1-1/16 |
12-6-6 JBZ | 12-6-6 JLZ | 1210-3-6-6 | 3/4 | 3/8 | 3/8 | 3.01 | 1.16 | 1.56 | 1.16 | 1.45 | 1.16 | 1.45 | 1-1/16 |
12-10-8 JBZ | 12-10-8 JLZ | 1210-3-10-8 | 3/4 | 5/8 | 1/2 | 3.12 | 1.16 | 1.56 | 1.16 | 1.56 | 1.16 | 1.56 | 1-1/16 |
12-10-6 JBZ | 12-10-6 JLZ | 1210-3-10-6 | 3/4 | 5/8 | 3/8 | 3.12 | 1.16 | 1.56 | 1.16 | 1.56 | 1.16 | 1.45 | 1-1/16 |
12-8-6 JBZ | 12-8-6 JLZ | 1210-3-8-6 | 3/4 | 1/2 | 3/8 | 3.12 | 1.16 | 1.56 | 1.16 | 1.56 | 1.16 | 1.45 | 1-1/16 |
14-14-6 JBZ | 14-14-6 JLZ | 1410-3-14-6 | 7/8 | 7/8 | 3/8 | 3.52 | 1.36 | 1.76 | 1.36 | 1.76 | 1.36 | 1.65 | 1-3/8 |
14-14-4 JBZ | 14-14-4 JLZ | 1410-3-14-4 | 7/8 | 7/8 | 1/4 | 3.52 | 1.36 | 1.76 | 1.36 | 1.76 | 1.30 | 1.59 | 1-3/8 |
14-12-12 JBZ | 14-12-12 JLZ | 1410-3-12-12 | 7/8 | 3/4 | 3/4 | 3.52 | 1.36 | 1.76 | 1.36 | 1.76 | 1.36 | 1.76 | 1-3/8 |
14-12-8 JBZ | 14-12-8 JLZ | 1410-3-12-8 | 7/8 | 3/4 | 1/2 | 3.52 | 1.36 | 1.76 | 1.36 | 1.76 | 1.36 | 1.76 | 1-3/8 |
14-12-6 JBZ | 14-12-6 JLZ | 1410-3-12-6 | 7/8 | 3/4 | 3/8 | 3.52 | 1.36 | 1.76 | 1.36 | 1.76 | 1.36 | 1.65 | 1-3/8 |
14-10-6 JBZ | 14-10-6 JLZ | 1410-3-10-6 | 7/8 | 5/8 | 3/8 | 3.52 | 1.36 | 1.76 | 1.36 | 1.76 | 1.36 | 1.65 | 1-3/8 |
14-8-12 JBZ | 14-8-12 JLZ | 1410-3-8-12 | 7/8 | 1/2 | 3/4 | 3.52 | 1.36 | 1.76 | 1.36 | 1.76 | 1.36 | 1.76 | 1-3/8 |
16-16-12 JBZ | 16-16-12 JLZ | 1610-3-16-12 | 1 | 1 | 3/4 | 3.88 | 1.45 | 1.94 | 1.45 | 1.94 | 1.36 | 1.76 | 1-3/8 |
16-16-10 JBZ | 16-16-10 JLZ | 1610-3-16-10 | 1 | 1 | 5/8 | 3.88 | 1.45 | 1.94 | 1.45 | 1.94 | 1.36 | 1.76 | 1-3/8 |
16-16-8 JBZ | 16-16-8 JLZ | 1610-3-16-8 | 1 | 1 | 1/2 | 3.88 | 1.45 | 1.94 | 1.45 | 1.94 | 1.36 | 1.76 | 1-3/8 |
16-16-6 JBZ | 16-16-6 JLZ | 1610-3-16-6 | 1 | 1 | 3/8 | 3.88 | 1.45 | 1.94 | 1.45 | 1.94 | 1.36 | 1.65 | 1-3/8 |
16-16-4 JBZ | 16-16-4 JLZ | 1610-3-16-4 | 1 | 1 | 1/4 | 3.88 | 1.45 | 1.94 | 1.45 | 1.94 | 1.30 | 1.59 | 1-3/8 |
16-12-16 JBZ | 16-12-16 JLZ | 1610-3-12-16 | 1 | 3/4 | 1 | 3.70 | 1.45 | 1.94 | 1.36 | 1.76 | 1.45 | 1.94 | 1-3/8 |
16-14-14 JBZ | 16-14-14 JLZ | 1610-3-14-14 | 1 | 7/8 | 7/8 | 3.70 | 1.45 | 1.94 | 1.36 | 1.76 | 1.36 | 1.76 | 1-3/8 |
16-14-12 JBZ | 16-14-12 JLZ | 1610-3-14-12 | 1 | 7/8 | 3/4 | 3.70 | 1.45 | 1.94 | 1.36 | 1.76 | 1.36 | 1.76 | 1-3/8 |
16-14-8 JBZ | 16-14-8 JLZ | 1610-3-14-8 | 1 | 7/8 | 1/2 | 3.70 | 1.45 | 1.94 | 1.36 | 1.76 | 1.36 | 1.76 | 1-3/8 |
16-14-6 JBZ | 16-14-6 JLZ | 1610-3-14-6 | 1 | 7/8 | 3/8 | 3.70 | 1.45 | 1.94 | 1.36 | 1.76 | 1.36 | 1.65 | 1-3/8 |
16-14-4 JBZ | 16-14-4 JLZ | 1610-3-14-4 | 1 | 7/8 | 1/4 | 3.70 | 1.45 | 1.94 | 1.36 | 1.76 | 1.30 | 1.59 | 1-3/8 |
16-16-14 JBZ | 16-16-14 JLZ | 1610-3-16-14 | 1 | 1 | 7/8 | 3.88 | 1.45 | 1.94 | 1.45 | 1.94 | 1.36 | 1.76 | 1-3/8 |
16-12-10 JBZ | 16-12-10 JLZ | 1610-3-12-10 | 1 | 3/4 | 5/8 | 3.70 | 1.45 | 1.94 | 1.36 | 1.76 | 1.36 | 1.76 | 1-3/8 |
16-12-8 JBZ | 16-12-8 JLZ | 1610-3-12-8 | 1 | 3/4 | 1/2 | 3.70 | 1.45 | 1.94 | 1.36 | 1.76 | 1.36 | 1.76 | 1-3/8 |
16-10-6 JBZ | 16-10-6 JLZ | 1610-3-10-6 | 1 | 5/8 | 3/8 | 3.70 | 1.45 | 1.94 | 1.36 | 1.76 | 1.36 | 1.65 | 1-3/8 |
16-8-16 JBZ | 16-8-16 JLZ | 1610-3-8-16 | 1 | 1/2 | 1 | 3.70 | 1.45 | 1.94 | 1.36 | 1.76 | 1.45 | 1.94 | 1-3/8 |
16-8-8 JBZ | 16-8-8 JLZ | 1610-3-8-8 | 1 | 1/2 | 1/2 | 3.70 | 1.45 | 1.94 | 1.36 | 1.76 | 1.36 | 1.76 | 1-3/8 |
16-8-6 JBZ | 16-8-6 JLZ | 1610-3-8-6 | 1 | 1/2 | 3/8 | 3.70 | 1.45 | 1.94 | 1.36 | 1.76 | 1.36 | 1.65 | 1-3/8 |
16-8-4 JBZ | 16-8-4 JLZ | 1610-3-8-4 | 1 | 1/2 | 1/4 | 3.70 | 1.45 | 1.94 | 1.36 | 1.76 | 1.30 | 1.59 | 1-3/8 |
16-6-6 JBZ | 16-6-6 JLZ | 1610-3-6-6 | 1 | 3/8 | 3/8 | 3.59 | 1.45 | 1.94 | 1.36 | 1.65 | 1.36 | 1.65 | 1-3/8 |
